HEXAGON Newsletter 192 - March / April 2022

by Fritz Ruoss

Conical helical compression springs made of spring strip are referred to as "buffer springs". The calculation is similar to FED5 for conical helical compression springs made from round spring wire.
In the "pre-design" of FED19 you can enter a mean spring force Fm and a mean spring deflection sm. Half the spring length is assumed to be the spring deflection sm (sm = L0/2 = Lm).

In the "recalculation" you can enter the dimensions of the spring (strip thickness, strip width, coil diameter at top/bottom, spring length, number of coils. For 2 spring lengths L1 and L2, FED19 calculates the spring forces F1 and F2.

It is also possible to increase or decrease the coil pitch, defined by the pitch ratio Po/Pu.

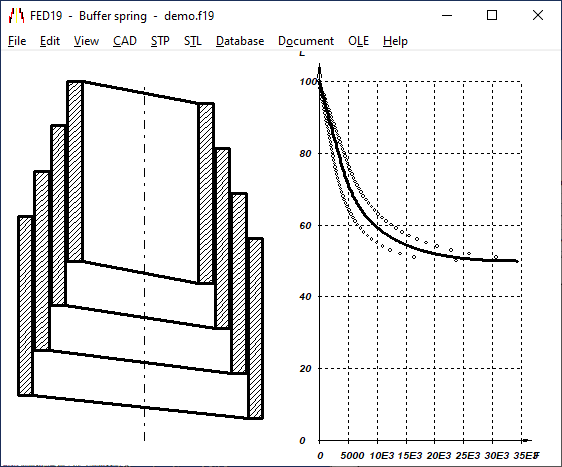

Coils of the buffer spring twist under load and collide with each other. If you enter a friction coefficient under "Calculation method", the spring characteristic is displayed with hysteresis.

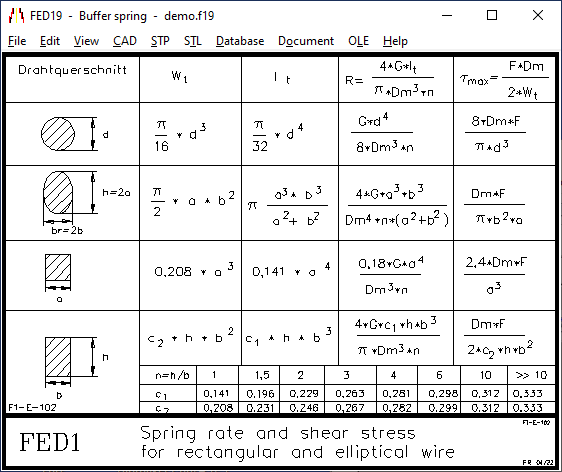

Because the ratio of the spring band width to the band thickness of the buffer springs is usually greater than 10, the factors c1 and c2 for rectangular wire have been added in the c1/c2 table of the spring calculation help image. For very large strip width to strip thickness ratio, c1 and c2 are both 1/3.

Until now, you could save the current calculation as a dbf or xls file under "File\Export dbf, xls". Now there is also the possibility to save all calculations in a folder into one dbf or xls file.

When printing the screen content, the default printer was previously set. In rare cases, there were problems when the default printer was removed or not available. Therefore, in January 2022, the default was removed, so you had to choose a printer first. This has now been criticized by customers who wanted the old printer function back after an update. So you no longer have to select the printer first, and with a pdf printer you had to enter a new file name, whereas previously the file name of the calculation was taken over. So the change was undone. However, if problems occur with deleted printers, you can now uncheck "Default printer" under File\Settings\Printer, then you must first select a printer.
