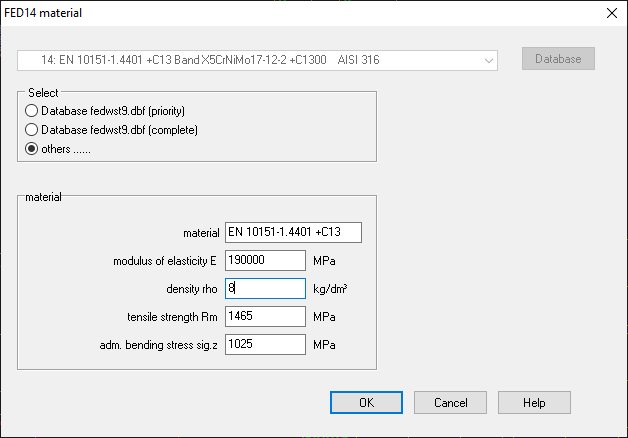

Similar to wire springs, you can now select the spring strip material from the database or enter the material data for leaf springs, wave springs and constant force springs. If you want to limit the selection from the database, you can mark the unwanted materials under "Database\Material" with the "-" button for deletion (but not delete/pack!), then they will no longer be displayed in the database (priority). As long as you don't change anything, option 1 and 2 are the same. If you choose "others", you can enter the data yourself. Note that this data is only valid for the corresponding strip thickness and that no Goodman diagram for fatigue strength can then be displayed.

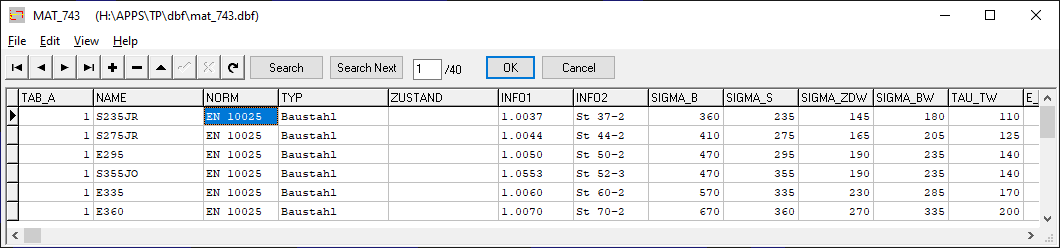

The strength values of structural steel in the MAT_743 material database have been adapted to DIN 743-3 Ber 1:2014-12

In SR1 and SR1+, the lateral displacements uq due to bending of the bolt and the conservatively permissible lateral displacement uq,kons are now also calculated and printed out in accordance with the new DIN 25201-4:2021-11 for shear forces. Warning if uq < uq,cons. These values are only required if lateral displacement is permitted under static stress. The safety SG according to VDI 2230 is less than 1 for this case. If the clamping plates move, the transverse displacement of the screw according to DIN 25201-4 is calculated as a girder firmly clamped on both sides.

uq = FQ*lk³ / (a*E*I)
a=stiffness factor a=12 (firmly clamped on both sides) to a=3 (firmly clamped on one side)
FQ=shear force, lk=clamp length, E=modulus of elasticity, I=bending moment of inertia of the bolt
uq,kons with FQ = FM,min * µK,min
Additionally, SR1 calculates
uq,perm with FQ = FKR,min * µT,min)

The sliding distance uq is limited by the bore of the clamping plates or by the positive fit. You can enter the design-related maximum glide distance "uq,max".

From this, SR1+ calculates a safety margin "S uq = uq,kons / uq,max". Error messages are only displayed if the safety SG (gliding) is less than 1.

       DIN 25201-4:2021

       ======================================================================
       Stiffness coefficient             a                          12
       ----------------------------------------------------------------------
       Lateral displacement (FQ)         uq       mm             0,024
       ----------------------------------------------------------------------
       Lateral displacement perm (FMreq) uq,kons  mm             0,052
       ----------------------------------------------------------------------
       Lateral displacement perm (FMzul) uq,zul   mm             0,050
       ----------------------------------------------------------------------
       Max. backlash of bolt in hole     uq,max   mm             0,100
       ----------------------------------------------------------------------
       Safety uq,kons / uq,max           S uq                     0,52
       ----------------------------------------------------------------------

Conical springs made of spring strip are known in a light version as springs for pruning shears (biconical) and in a heavy version as buffer springs for railways. From an energy point of view, helical compression springs with a rectangular cross-section make little sense. But if you need long, slender compression springs that must not buckle, such springs are the first choice. Or if you need a compression spring with a progressive characteristic and hysteresis.

Similar to a conical spring made of round wire, the spring characteristic is progressive because the large coils touch the ground one after the other. The windings twist under load, which creates friction between the lateral surfaces and thus a hysteresis in the spring characteristic. The stress is usually static. Because of the friction between the coils, such springs are rather unsuitable for dynamic applications.
