HEXAGON Newsletter 189 - Sept./Oct. 2021

by Fritz Ruoss

We have created a new plus version of FED9. FED9+ contains all the functions of FED9 plus production drawing, animation, Quick4 view, online input and spring characteristics as polar diagram.

FED9+ Quick input

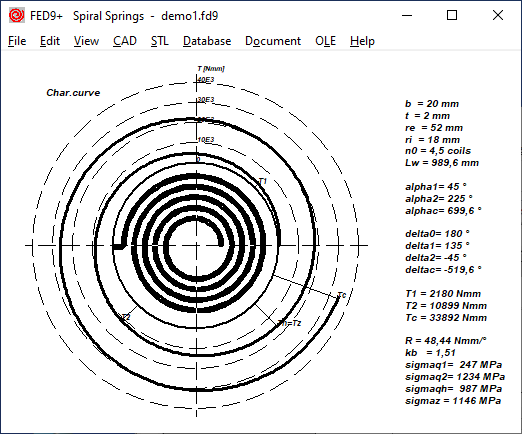

Load-deflection curve of the spiral spring as polar diagram in FED9+

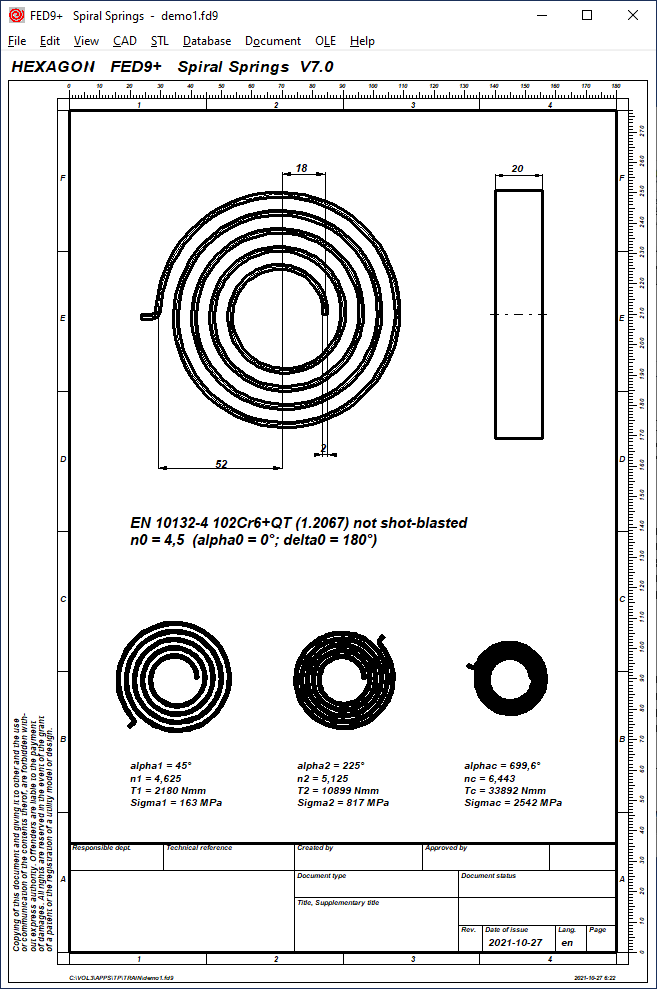

FED9+ Production drawing

FED9 + is available now at a price of 490 euros, or as an upgrade from FED9 to FED9 + for 194 euros.

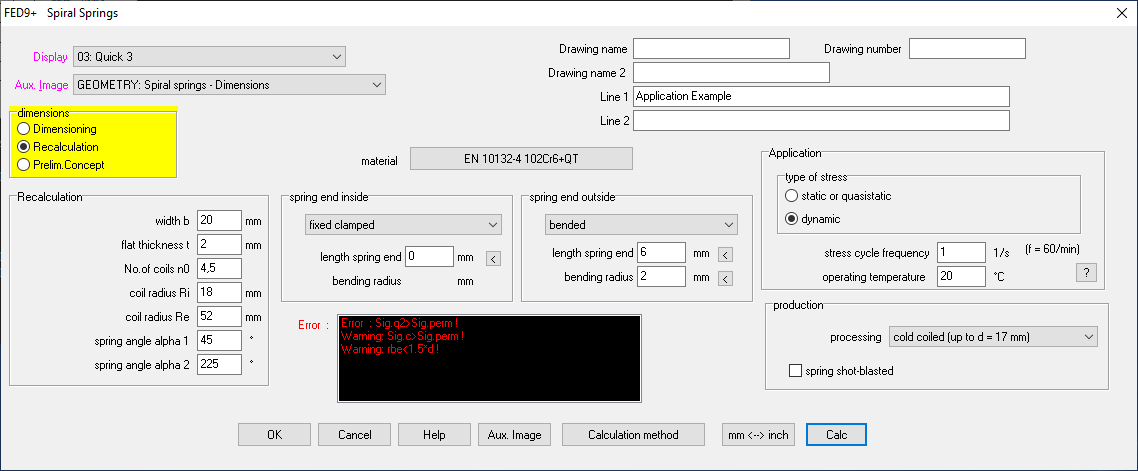

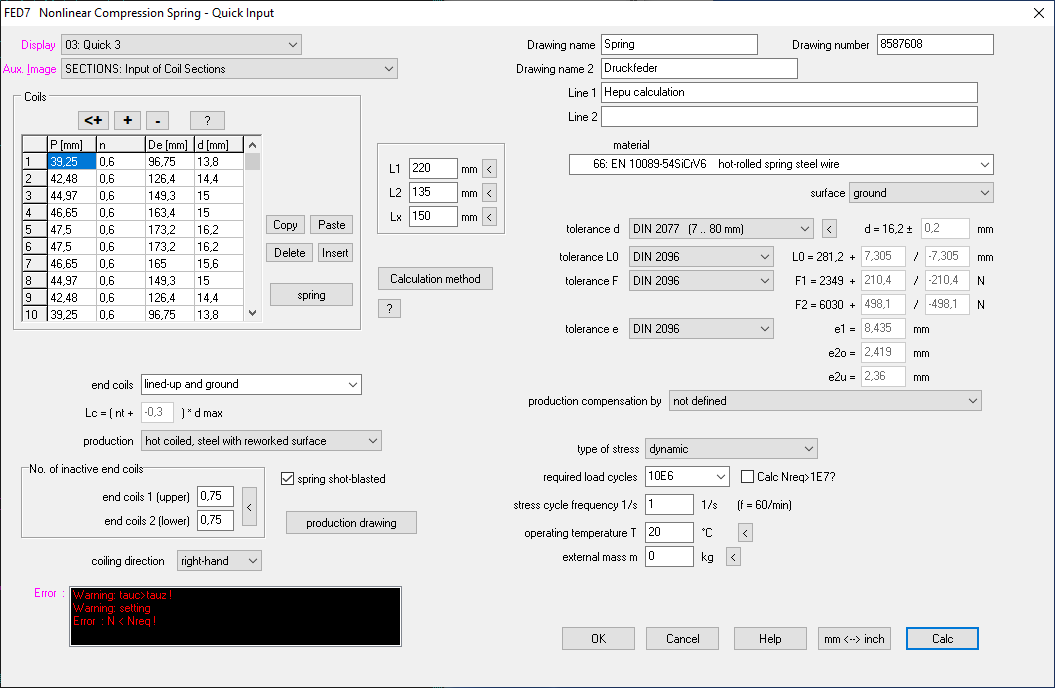

In the quick input, all input windows have been combined in one large window. With "Calc" the spring is calculated and the results are displayed in the background window.

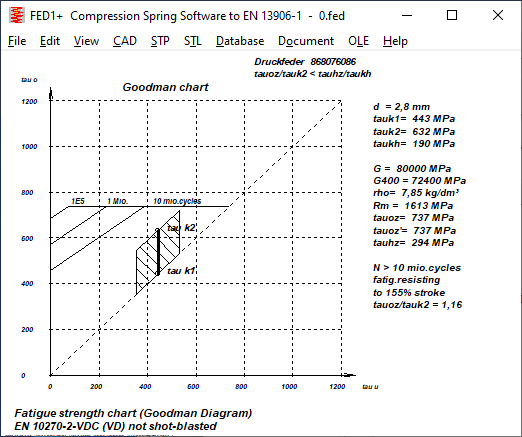

If the spring force F1 is relatively high, the spring stroke is not limited by the maximum stroke tension, but rather by the (static) upper tension (error message tauk2> tauz). That this can also be seen numerically in the Goodman diagram, the safety margin tauoz / tauk2 is now also displayed.

In the strength calculation according to the "SAE Design Guide", the hoop stress Sh is the hoop stress in the hub, which can be quite high if the wall thickness is small. However, the hoop stress Sh was output too small, this has been corrected. The shear stress St in the hub can be even higher; in contrast to the "hoop stress", this is independent of the overlapping face width. In contrast to the shear stress of the shaft, the shear stress of the hub can be neglected if the forces are directly derived radially, e.g. if the hub is a gear or a pulley. If torsion does not occur, then "torsional shear stress" in the hub is not relevant. Otherwise the outside diameter of the hub should be increased.

The strength calculation in WN2 + and WN10 has so far been limited to the surface pressure on the tooth flanks and the torsional stress of the shaft, using various methods: according to Niemann (2005), according to Niemann (1981), according to Roloff / Matek. Now the calculation according to the SAE Design Guide (1994) has been added. There have already been several drafts of DIN 5466 specifically for splines according to DIN 5480, but these have all been withdrawn. It was not possible to analytically calculate stress distribution, notch factors, maximum stress, suitable for any size.

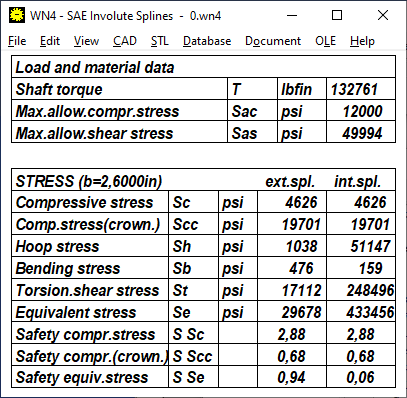

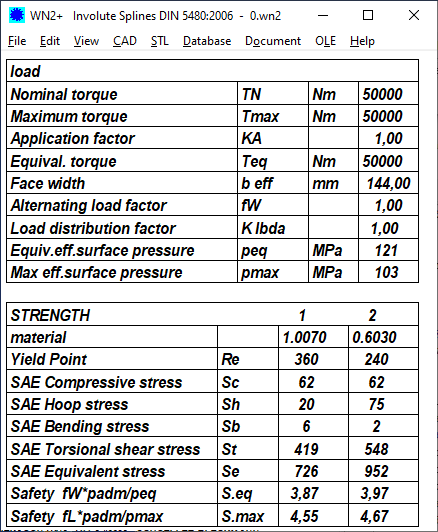

       STRESS CALCULATIONS ACCORDING TO SAE DESIGN GUIDE
       ----------------------------------------------------------------------
       Compressive stress                Sc       MPa               62
       ----------------------------------------------------------------------
       Spline teeth shear stress         Ss       MPa               68
       ----------------------------------------------------------------------
       Hoop stress                       Sh       MPa          20         75
       ----------------------------------------------------------------------
       Bending stress                    Sb       MPa           6          2
       ----------------------------------------------------------------------
       Stress concentration factor       Kt                   2,2        2,2
       ----------------------------------------------------------------------
       Torsional shear stress            St       MPa         419        548
       ----------------------------------------------------------------------
       Equivalent stress                 Se       MPa         726        952
       ----------------------------------------------------------------------

Warning if deformation of clamping plate > 5%

Warning if assembly angle > 360°

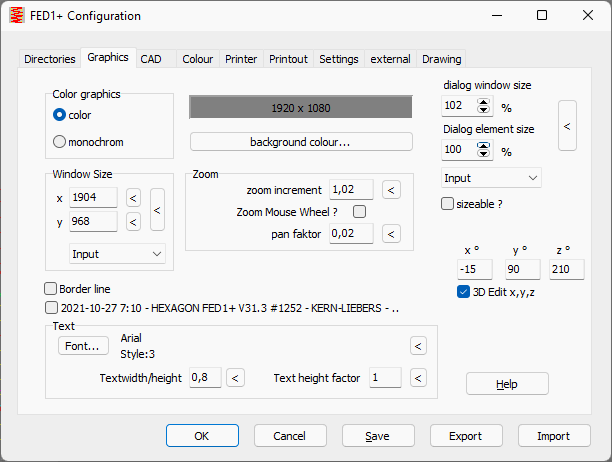

Windows 11 has been around since October 2021. All HEXAGON programs run without problems with Windows 11. Even 15 year old versions.

The corners are now more rounded and some controls look a bit different, otherwise you won't notice a big difference to Windows 10.

With a floating license, all clients must use the same network path. If this path is a UNC path, a problem with some versions was that only one client computer could access the software. There is no problem if the key code request is "Request key code for wxxxx-10247: xxxx" or the network drive is a logical drive. The problem no longer occurs with new versions or updates.

With the network version it is important that each user uses his own configuration (cfg file in the working directory). The working directory is configured by clicking the program icon with the right mouse button, then "Properties", "Shortcut", "Execute in". Write "C: \ HEXAGON", then the cfg file will be read from there. When the program is started by clicking on a calculation file, the cfg is also loaded from "C: \HEXAGON".

After downloading, unzip the zip file directly onto a CD-ROM or SD card, then install the software from this CD or SD.
