HEXAGON Newsletter 180 - March/April 2020

by Fritz Ruoss

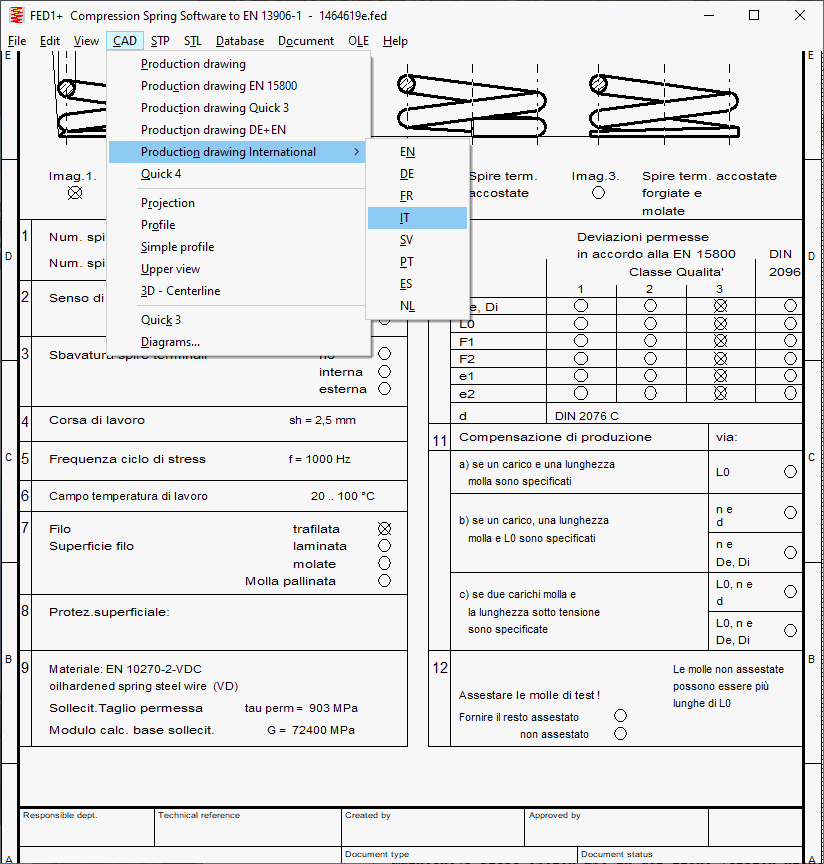

Under "View \ International Production Drawing" you can view and print the production drawing in German, English, French, Italian, Spanish, Portuguese, Swedish and Dutch since 2018. These functions are now also available in the CAD menu so that international drawings can also be created as DXF or IGES files and transferred to CAD.

If the rim thickness of the ring gear is too small for the internal toothing, there is a new error message "hoop stress> Sig.FE!". In this case you have to enlarge the outer ring diameter under "Edit \ Dimensions". The outer ring diameter of a ring gear corresponds to the bore diameter on a gear wheel (externally toothed).

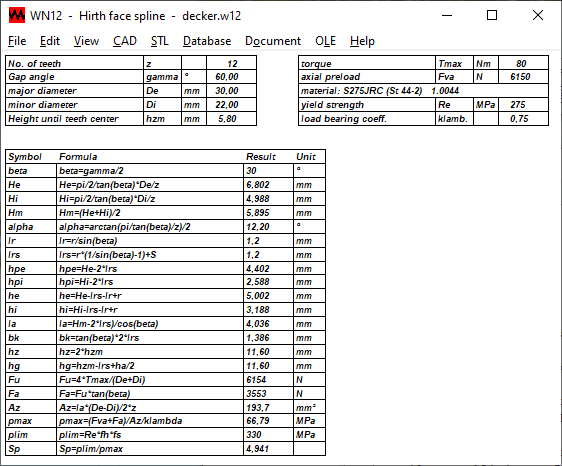

View \ Calculation: The correct value is now displayed for the inner tooth height "hi". Wrong value was only in the graphic with the calculation formulas, however, "hi" was always correctly displayed in the printout, production drawing and quick views.

HEXAGON software can be used in command line mode for integration into other programs. Example: With

graphic no. 7 of bolted joint TEST.SR1 should be output as a DXF file. In some newer versions of SR1 and SR1+ this no longer worked, the bug has been fixed in the meantime.

The function has been available for a long time in all programs, and a selection of 5 to 30 drawings and diagrams was exportable. You had to look up in the manual or try out to find out which ones they were.

In the meantime, for programs with quick input, the drawings, diagrams, quick views shown under "Display" have been adopted in the same order in the command line mode. In order to no longer have to count the CAD number, the graphics are now numbered consecutively, and there is a description of the command line options in the help menu.

In the help menu there is a description of the options of the command line mode with a list of available drawings, diagrams, graphics. Example FED1+:

       ----------------------------------------------------------------------
       FED1+ Command Line Mode
       ----------------------------------------------------------------------

       wfed1 filename [/I] [/CADi:j] [/E] [/NOGUI]
       ----------------------------------------------------------------------

       /I       -> TXT file (Printout)

       /CADi:j  -> CAD File
                   i: 1=DXF, 2=IGS, 5=TXT, 6=STL
                   j: index (1,2,3, .. ,37)

       /NOGOUI  -> No GUI, exit on fatal error

       /E       -> EDI file, see user manual for details

       /?       -> Help

       ----------------------------------------------------------------------
       Example: wfed1 test.fed          ->  GUI
       Example: wfed1 test.fed /I       ->  test.txt
       Example: wfed1 test.fed /CAD1:1  ->  test.dxf
       Example: wfed1 test.edi /E /NOGUI->  test.edi
       ----------------------------------------------------------------------

       CAD Index:
       ----------------------------------------------------------------------
       01: Quick 1
       02: Quick 2
       03: Quick 3
       04: Quick 4
       05: Production drawing
       06: Production drawing EN 15800
       07: Production drawing Quick 3
       08: Diagram (12)
       09: Char.curve F-s
       10: Char.curve F-s tol
       11: Char.curve F-L
       12: Goodman
       13: Haigh-Goodman
       14: S-N
       15: Smith Diagram
       16: JIS-Goodman
       17: Buckling diagram
       18: Relaxation Rx % = f(tau, T, d)
       19: Relaxation Rx % = f(tau/tauz, T, d)
       20: Relaxation Rx % = f(tau, T)
       21: Relaxation Rx % = f(T, tau)
       22: Relaxation Rx % rel = f(T)
       23: Relaxation Rx F2 = f(T)
       24: spring energy
       25: Drawing View
       26: Drawing Profile
       27: Drawing 3D
       28: temperature diagram G-T
       29: temperature diagram F1-T
       30: temperature diagram F2-T
       31: stress tau-s
       32: stress coefficient k
       33: stress tau-d (lin.)
       34: stress tau-d (log.)
       35: stress Rm Quick
       36: Production drawing DE+EN
       37: Resonance curve
       ----------------------------------------------------------------------

If you can access the company's server via telephone line or the Internet, you can also work with HEXAGON software at home. If the software is running slowly and unusually slowly, you only have to optimize under "File \ Settings \ Directories":

1. Temporary folder must be on your home computer (c: \ temp)

2. Check "Copy DBF-> Temp"

3. Save settings

Then it only takes a while until the program is loaded into memory. After that there is no network access and therefore no more waiting times, everything is in the memory and in the Temp folder on the home computer.

We recommend installing the software on an external hard drive instead of the local hard drive. Then you can take the hard drive home and continue working in the home office. To operate on another computer, you only have to start the exe file on the external hard drive (e.g. wfed1.exe). Then check the settings under "File \ Settings \ Directories". Ideally, all configured directories are on the external hard drive. If the external hard drive is slow, only configure the temporary directory on the faster primary hard drive or memory disk.

You can copy the cfg file with the settings for the home computer to "c:\hexagon\".
