Calculation and Design of Geneva mechanism
GEO7 calculates dimensions, operation angle, velocity and acceleration of internal Geneva drives. GEO7 generates drawings of Maltese wheel and driving crank as DXF or IGES files to be used with your CAD software. The component parts can be generated as STL files, then printed on a 3D printer and assembled as functioning model of a Geneva mechanism.
Dimensions
Number of slots in the Maltese wheel may be 4, but also any number between 3 and 100.
Size of the Geneva mechanism can be defined either by crank length or by center distance between crank and Maltese wheel. Then enter width of slots and driving crank diameter. Dimensions of arc segments used as locking device are calculated by GEO7, just enter minimum wall thickness and clearance between arc segments of Maltese wheel and driving wheel.
Diagrams

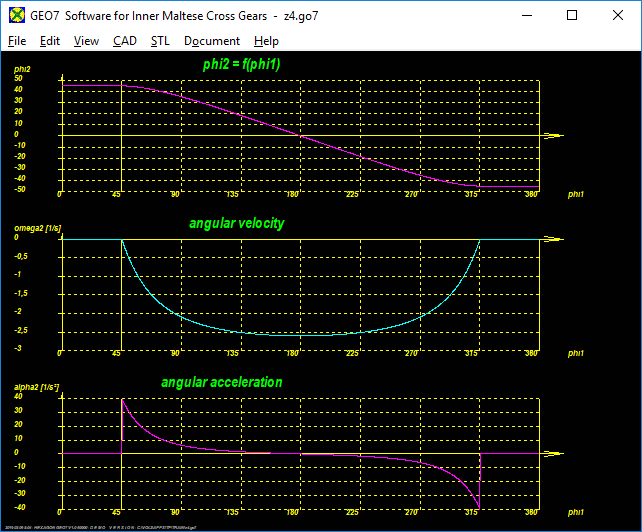

Angle of rotation of the Maltese wheel as function of the driving crank as well as velocity and acceleration over one revolution can be shown as diagram.
Animation

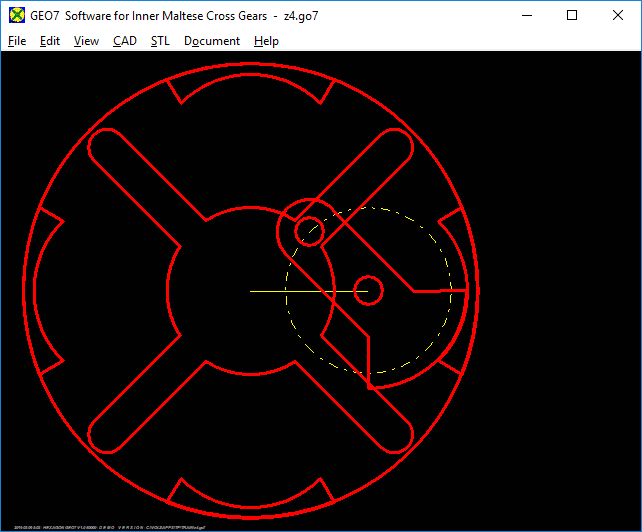

Rotation of Maltese wheel and driving crank can be simulated on screen as animation.
Text Output
Input data and calculation results may be printed, saved as text file or HTML file, or exported to MS Excel via OLE interface.
Graphics Output
Drawings and diagrams can be printed on any Windows printer, or exported to CAD.
CAD Interface
Drawing of Maltese wheel, driving crank, diagrams and tables can be exported as DXF- or IGES files, and opened in CAD. Layers, colours and text font can be configured in GEO7.
STL Interface
Maltese cross wheel, driving crank, bearing plate and spacer sleeve can be generated as STL file and produced with 3D printer. This way you can assemble a Geneva mechanism with the printed parts, just to be completed with metal bolt and shafts.
HEXAGON Help System
GEO7 provides help text and auxiliary images. Warnings and error messages occur if exceeding a limit. For every error message you can have a description and remedy suggestion.
Units
Units can be switched between metric (mm) and imperial (inches).
System Requirements
GEO7 is available as 32-bit app or as 64-bit app for Windows 11, 10, 8, 7.
Scope of Delivery
Program with example applications and help images, user manual (pdf), license agreement for an indefinite period of time
Guarantee
HEXAGON gives a 24 month guarantee on full functionality of the software. We provide help and support by email and hotline without extra charge.
GEO7 is constantly being improved and updated. Registered users will be informed about news, and can get new versions at a reasonable update price.
